Safety Belt Retractor - Third Row: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Torx Bit, Safety Belt Bolt 501-010 (T77L-2100-A)

NOTE: RH side shown, LH side similar.

NOTE: Vehicle may be equipped with a power liftgate motor assembly.

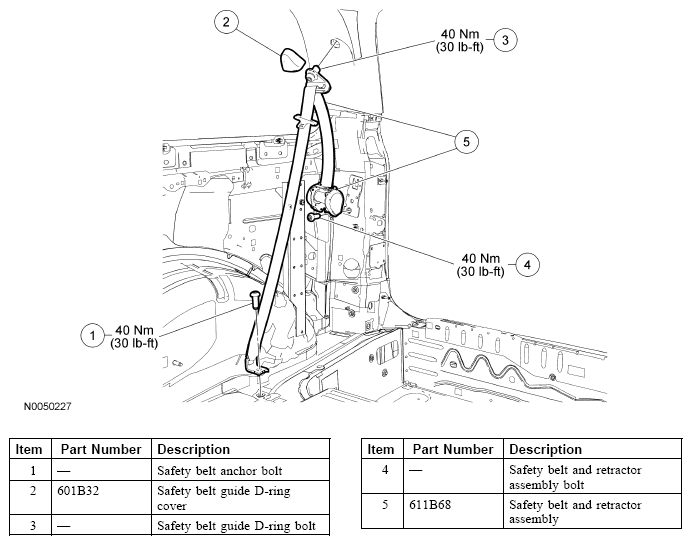

Fig 1: Safety Belt Retractor Replacement Components -- Third Row With Torque Specification's

Courtesy of FORD MOTOR CO.
