Selector Lever Cable: Notes

Vehicles Equipped with a 6R60 Transmission

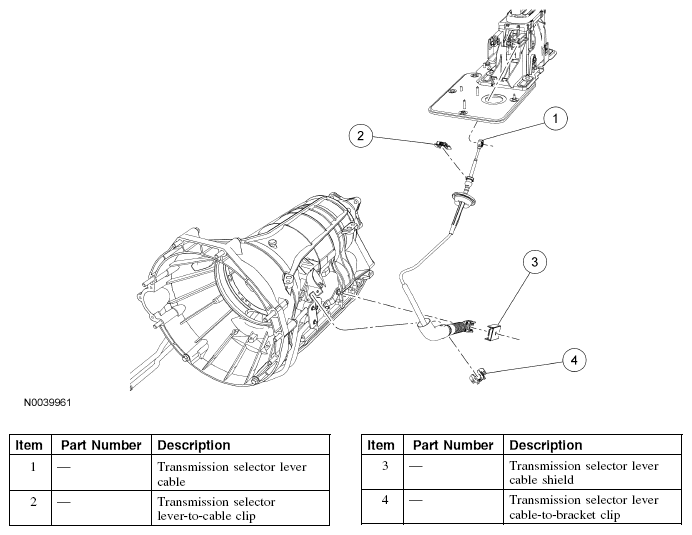

Fig 1: Identifying Selector Lever Cable Components (6R60 Transmission)

Vehicles Equipped with a 5R55S Transmission

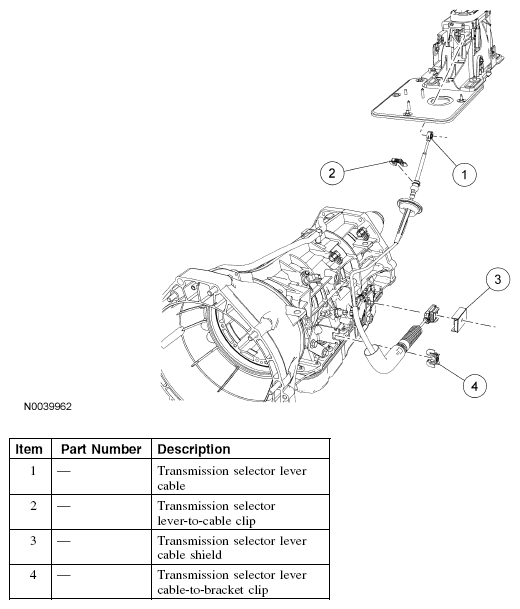

Fig 2: Identifying Selector Lever Cable Components (5R55S Transmission)
