Mercury
›
2006
›
Mountaineer 4.6 8, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Acceleration Control System
›
Removal And Installation
›
Accelerator Pedal - Fixed
›
Notes
Accelerator Pedal - Fixed: Notes

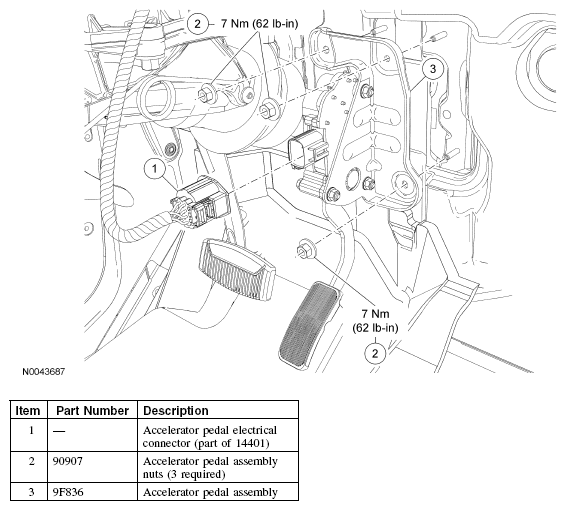

Fig 1: Identifying Accelerator Pedal - Fixed Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
