OEM Connector End Views
›
Connector Views
›
Occupant Classification System Module Connector
Occupant Classification System Module Connector

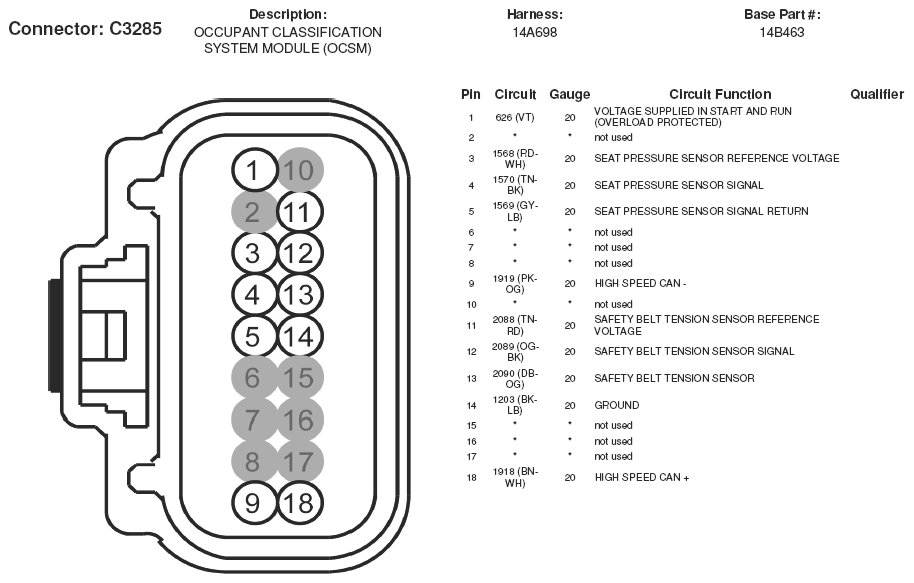

Fig 1: Occupant Classification System Module Connector End View (C3285)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
