Smart Junction Box (SJB): Notes

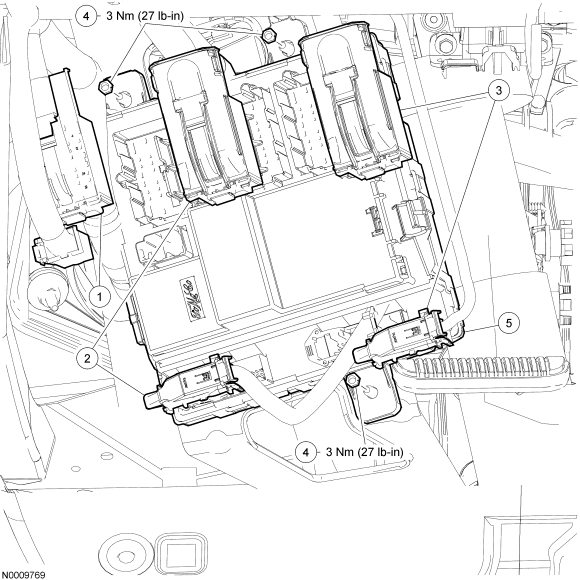

Fig 1: Exploded View Of Smart Junction Box SJB With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	SJB electrical connectors (part of 14290)
2	-	SJB electrical connectors (part of 14401)
3	-	SJB electrical connectors (part of 14A005)
4	-	SJB nuts (3 required)
5	14A068	SJB
