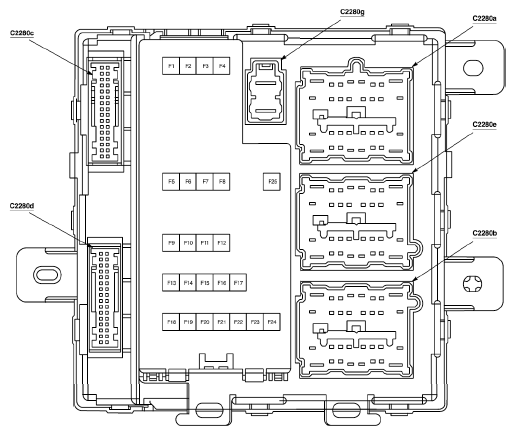

Smart Junction Box (SJB)
NOTE:
For component location, see appropriate ELECTRICAL COMPONENT LOCATIONS article.
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 20 | High beam relay |
| F2 | 15 | Courtesy lamp relay, Battery saver relay |
| F3 | 25 | Door lock relay, Door unlock relay, Driver door unlock relay, Decklid relay |
| F4 | 15 | Adjustable pedal switch |
| F5 | 20 | Horn |
| F6 | 20 | Subwoofer amplifier |
| F7 | 7.5 | HVAC module, DATC, Climate control assembly (Manual A/C), Powertrain Control Module (PCM), Clock, Instrument Cluster (IC), EVAP canister vent control solenoid |
| F8 | 15 | Park/turn lamp, left front, Park/turn lamp, right front, Side lamp, left front, Side lamp, right front, Lamp assembly, left rear, Lamp assembly, right rear, License lamps, License plate lamp, left, License plate lamp, right |
| F9 | 20 | Data Link Connector (DLC), Power point, instrument panel |
| F10 | 7.5 | Exterior rear view mirror switch, Seat adjust switch, driver side front, Driver Seat Module (DSM), Satellite Digital Audio Receiver System (SDARS) module |
| F11 | 20 | Rear Entertainment Module (RETM), Audio Control Module (ACM) |
| F12 | 10 | Lamp assembly, left rear, Lamp assembly, right rear, Electrochromatic inside mirror unit, Parking Aid Module (PAM) |
| F13 | 7.5 | Audio Control Module (ACM) |
| F14 | 7.5 | Starter relay, Powertrain Control Module (PCM) |
| F15 | 10 | Door lock switch, driver side, Door lock switch, passenger side, Power window motor, driver side front, Auxiliary function selector switch assembly, rear, Roof opening panel module, Audio Control Module (ACM) |
| F16 | 10 | Climate control assembly, Exterior rear view mirror, right, Exterior rear view mirror, left, HVAC module, DATC |
| F17 | 30 | Rear window defrost grid |
| F18 | 10 | Passive anti-theft transceiver, Brake pedal position switch, Redundant pedal switch, PCM power diode, PCM power relay, Fuel pump relay, F46 in Battery Junction Box (BJB) |
| F19 | 10 | Parking Aid Module (PAM), Heated seat module, Center stack switch assembly, Differential Electronic Module (DEM), Anti-lock Brake System (ABS) module |
| F20 | 7.5 | Climate control assembly, HVAC module, DATC, Instrument Cluster (IC) |
| F21 | 7.5 | Restraints Center Module (RCM) |
| F22 | 7.5 | Electronic compass, Electrochromatic inside mirror unit, Auxiliary relay box 1, Auxiliary relay box 2, Auxiliary relay box 3 |
| F23 | 7.5 | Instrument Cluster (IC), Blower motor relay, Windshield wiper relay |
| F24 | 7.5 | Passenger Air Bag Deactivation (PAD) indicator, Occupant Classification System Module (OCSM) |
| F25 | 30 | Accessory delay relay |
