Side Lamp Connector

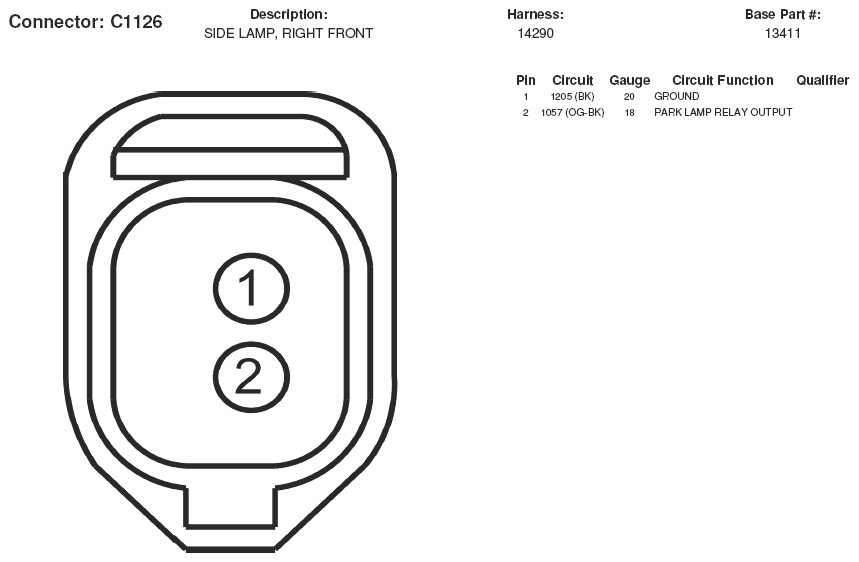

Fig 1: Side Lamp Connector End View (C1126)
G05168856Courtesy of FORD MOTOR CO.
Fig 2: Side Lamp Connector End View (C1127)
G05168857Courtesy of FORD MOTOR CO.
