Coolant Pump: Notes

Material

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

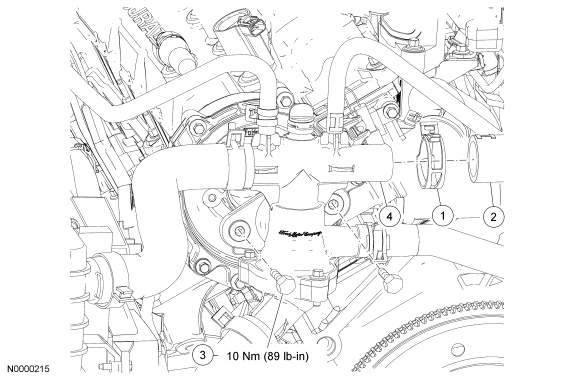

Fig 1: Exploded View Of Bypass Tube Hoses With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	15161	Thermostat housing-to-bypass tube hose clamp
2	8A507	Thermostat housing-to-bypass tube hose
3	W500214	Thermostat housing bolt (2 required)
4	8A586	Thermostat housing

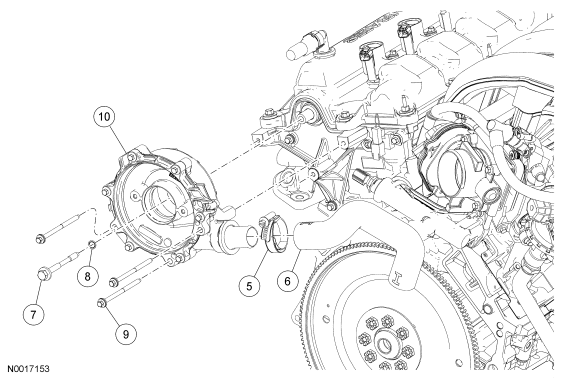

Fig 2: Exploded View Of Coolant Pump With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
5	W710951	Coolant pump hose clamp
6	8A577	Coolant pump hose
7	W709162	Center coolant pump bolt
8	8551	Center coolant pump bolt sealing washer
9	W707083	Outer coolant pump bolt (3 required)
10	8501	Coolant pump
