Removal And Installation: Radiator: Notes

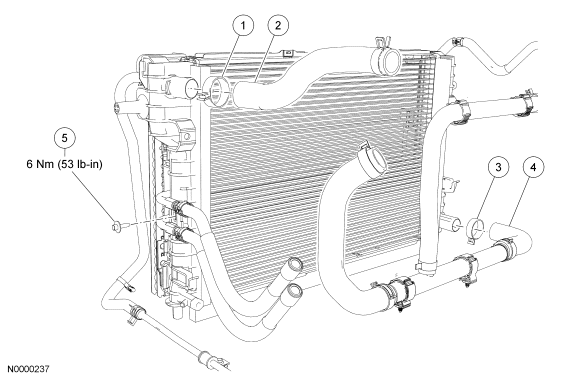

Fig 1: Exploded View Of Radiator Hoses With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W527372	Upper radiator hose clamp
2	8333	Upper radiator hose
3	W527372	Lower radiator hose clamp
4	8A319	Lower radiator hose
5	N606676	Transmission cooler bracket bolt

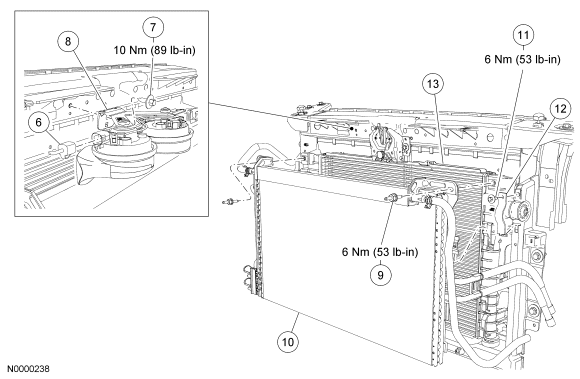

Fig 2: Exploded View Of Radiator & Horns With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
6	14A464	Horn assembly electrical connector
7	N606675	Horn assembly bracket bolt
8	130600	Horn assembly
9	W701571	A/C condenser retaining bolt (2 required)
10	19710	A/C condenser
11	N606676	Radiator support bracket bolt (2 required)
12	8A194	Radiator support bracket (2 required)
13	8005	Radiator
