Exhaust Manifold - LH: Notes

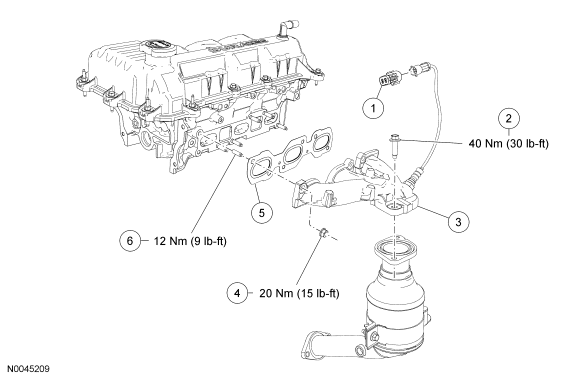

Fig 1: Exploded View Of Left Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Heated oxygen sensor (HO2S) electrical connector (part of 12B637)
2	W709982	LH exhaust manifold-to-catalytic converter bolt (2 required)
3	9431	LH exhaust manifold
4	W701706	LH exhaust manifold nut (6 required)
5	9448	LH exhaust manifold gasket
6	W701732	LH exhaust manifold stud (6 required)
