Exhaust Manifold - RH: Notes

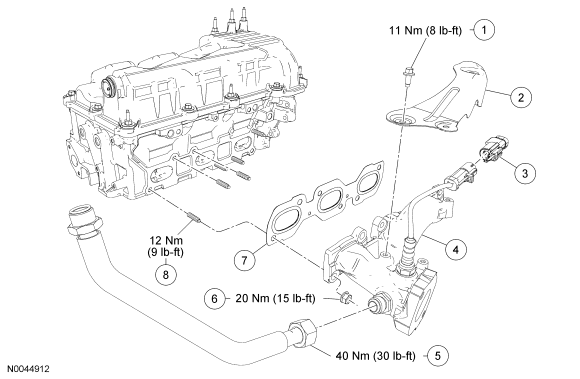

Fig 1: Exploded View Of Right Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701130	RH exhaust manifold heat shield bolts (2 required)
2	9A462	RH exhaust manifold heat shield
3	14A464	Heated oxygen sensor (HO2S) electrical connector (part of 12B637)
4	9430	RH exhaust manifold
5	-	Exhaust gas recirculation (EGR) system module tube fitting nut (part of 9D477)
6	W701706	RH exhaust manifold nut (6 required)
7	9448	RH exhaust manifold gasket
8	W701732	RH exhaust manifold stud (6 required)
