Fuel Charging Wiring Harness: Notes

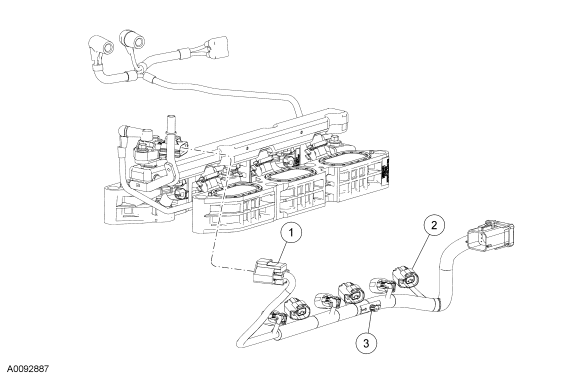

Fig 1: Exploded View Of Fuel Charging Wiring Harness

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel rail pressure and temperature sensor electrical connector
2	14A464	Fuel injector electrical connector (6 required)
3	9H589	Fuel charging wiring harness
