Crankshaft Position (CKP) Sensor: Notes

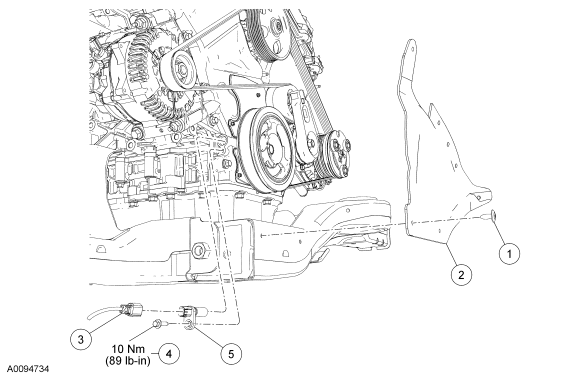

Fig 1: Exploded View Of Crankshaft Position CKP Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706092	Pin-type retainer (7 required)
2	10317	Splash shield
3	14464	Crankshaft position (CKP) sensor electrical connector
4	W500214	CKP sensor bolt
5	6C315	CKP sensor
