Receiver Drier: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

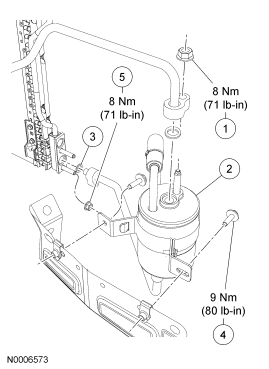

Fig 1: Exploded View Of Receiver Drier With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	Receiver/drier outlet fitting nut
2	19959	Receiver/drier
3	19E889	O-ring seal
4	W702434	Receiver/drier bracket bolt (2 required)
5	W520413	Condenser outlet fitting nut
