Interior Lamp/ Map Lamp Assembly Connector

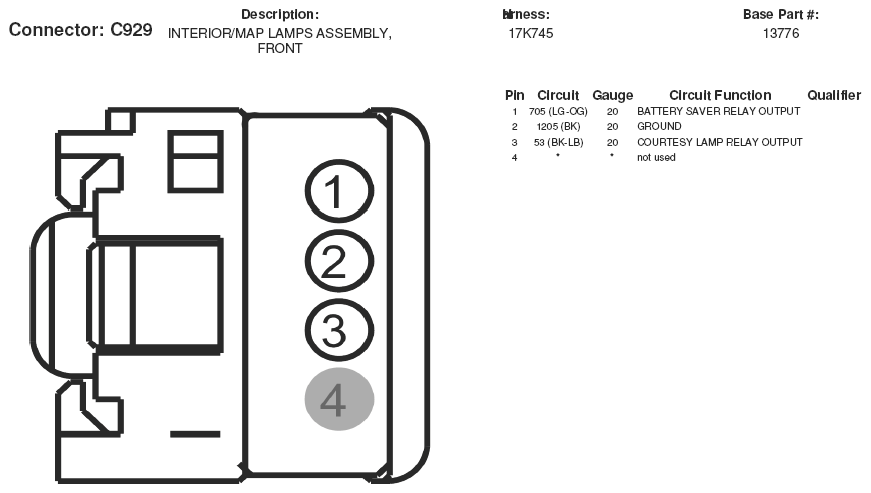

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C929)
G05168831Courtesy of FORD MOTOR CO.

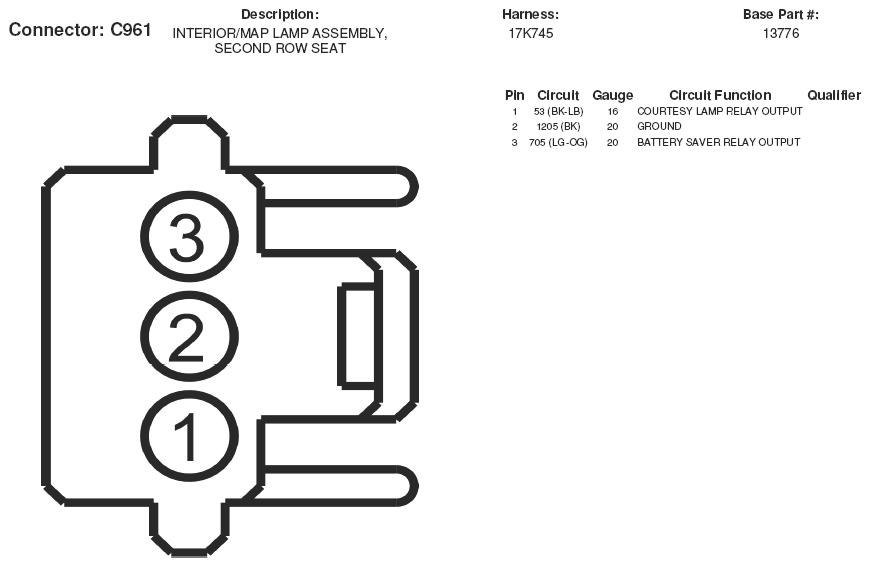

Fig 2: Interior Lamp/ Map Lamp Assembly Connector End View (C961)
G05168835Courtesy of FORD MOTOR CO.

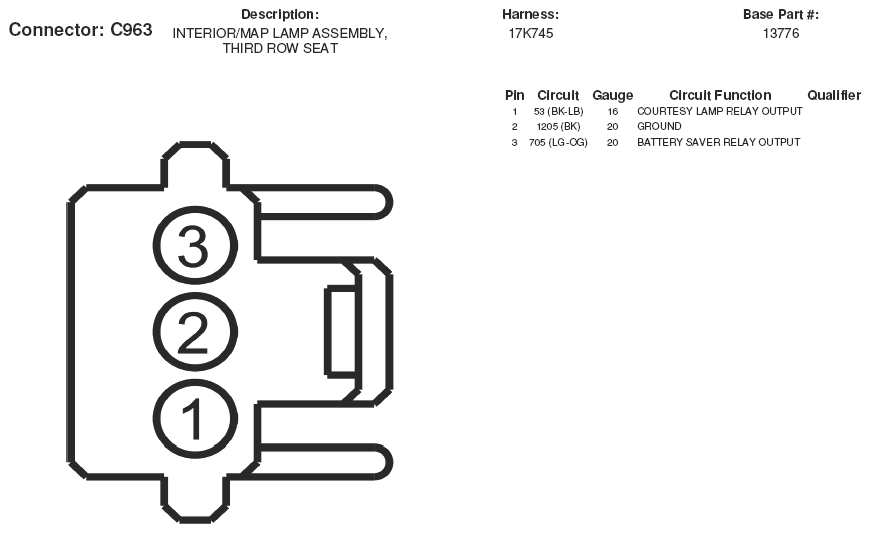

Fig 3: Interior Lamp/ Map Lamp Assembly Connector End View (C963)
G05168836Courtesy of FORD MOTOR CO.
