Power Point Connectors

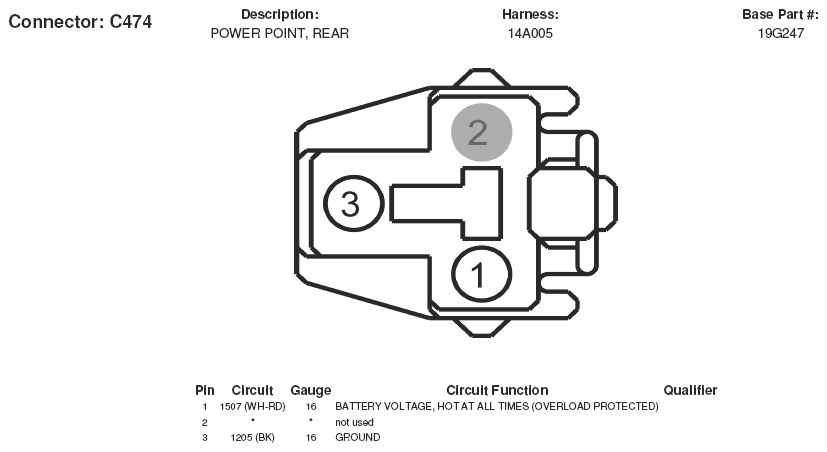

Fig 1: Power Point Connector End View (C474)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
