Satellite Digital Audio Receiver Connector

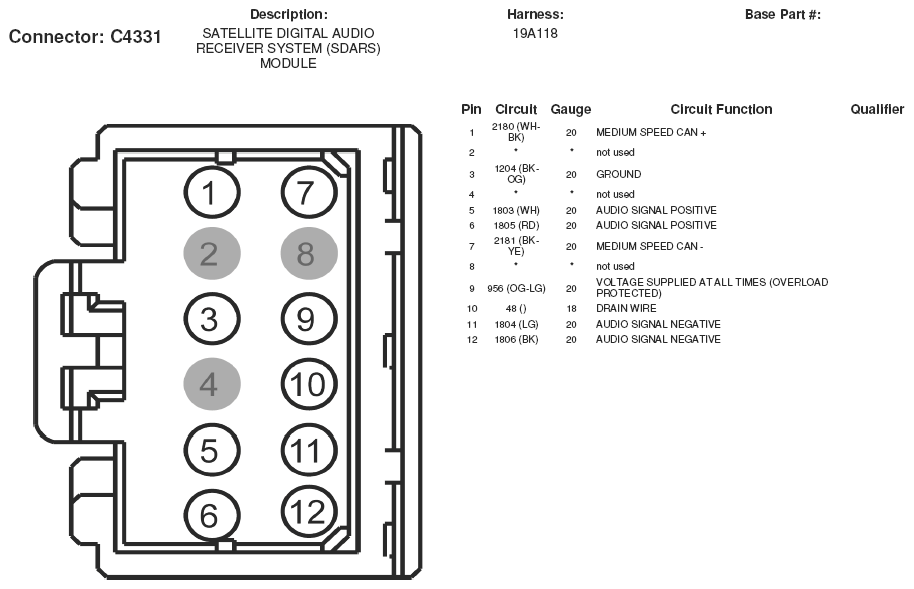

Fig 1: Satellite Digital Audio Receiver Connector End View (C4331)
G05168940Courtesy of FORD MOTOR CO.
