Side Air Bag Module Connectors

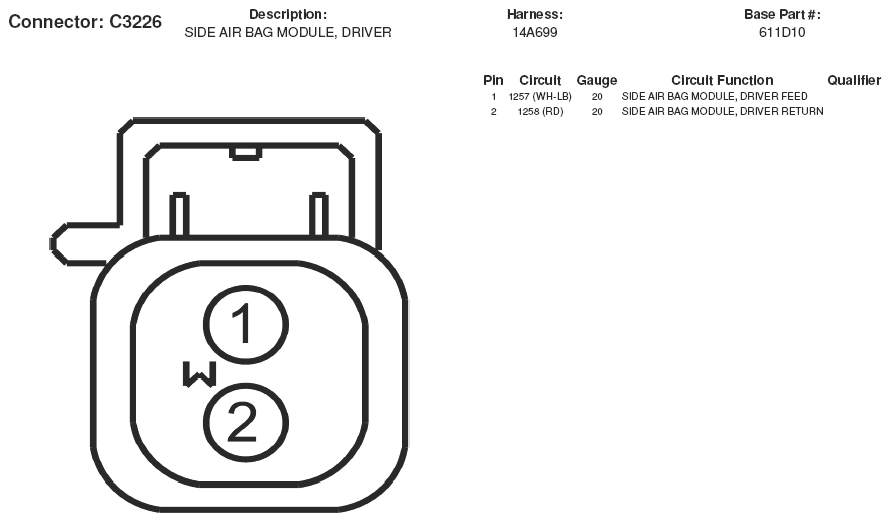

Fig 1: Side Air Bag Module Connector End View (C3226)
G05168917Courtesy of FORD MOTOR CO.

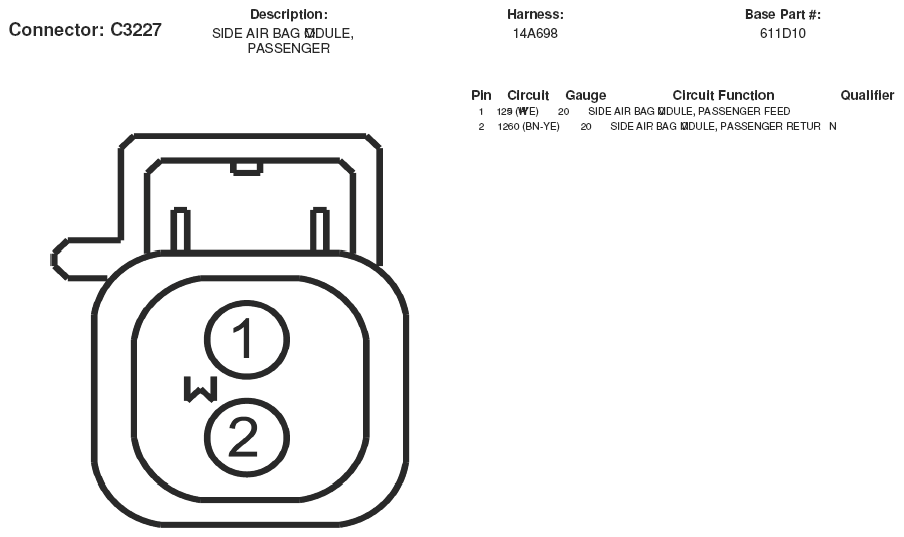

Fig 2: Side Air Bag Module Connector End View (C3227)
G05168918Courtesy of FORD MOTOR CO.
