Side Impact Sensor Connectors

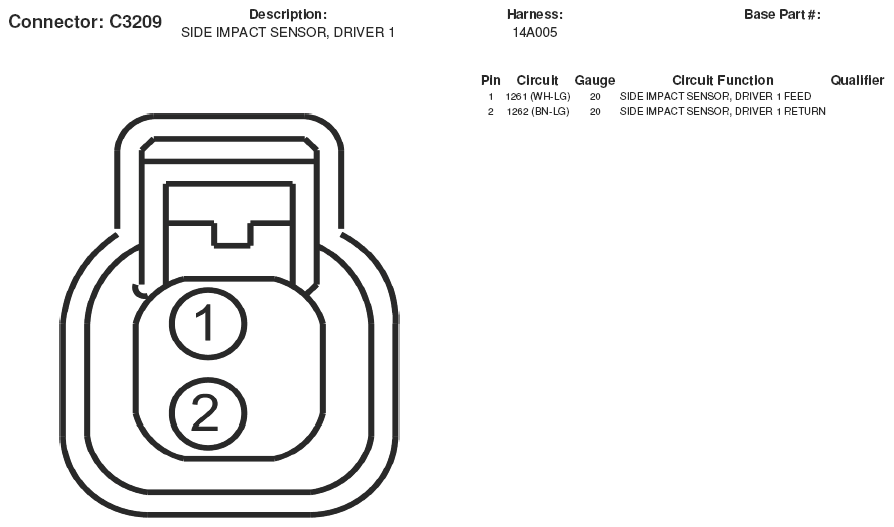

Fig 1: Side Impact Sensor Connector End View (C3209)

Courtesy of FORD MOTOR CO.

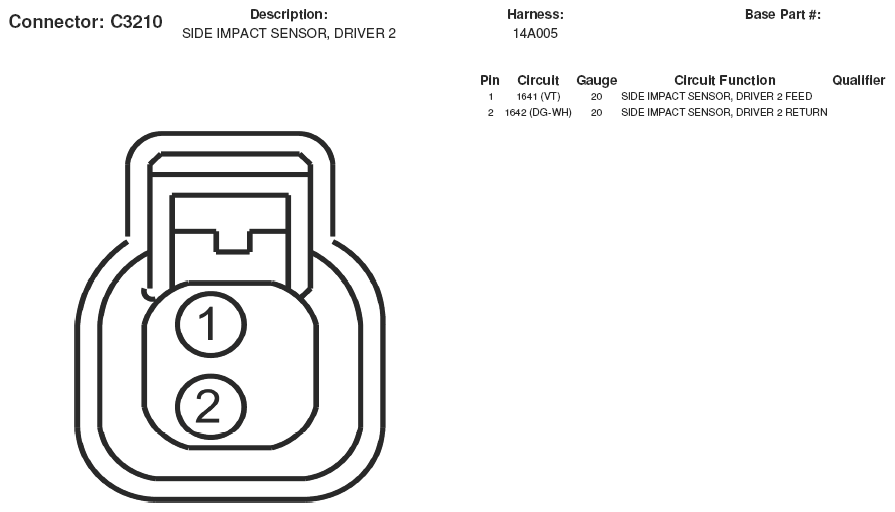

Fig 2: Side Impact Sensor Connector End View (C3210)

Courtesy of FORD MOTOR CO.

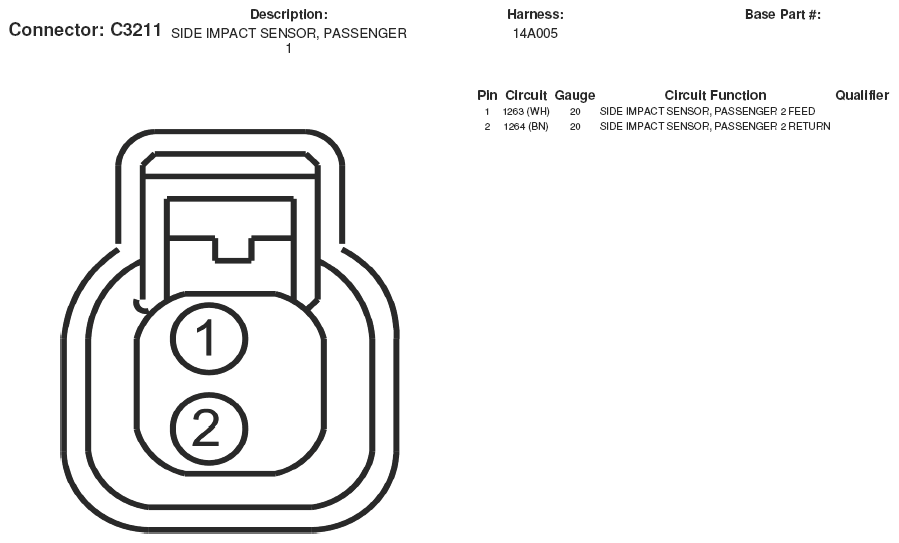

Fig 3: Side Impact Sensor Connector End View (C3211)

Courtesy of FORD MOTOR CO.

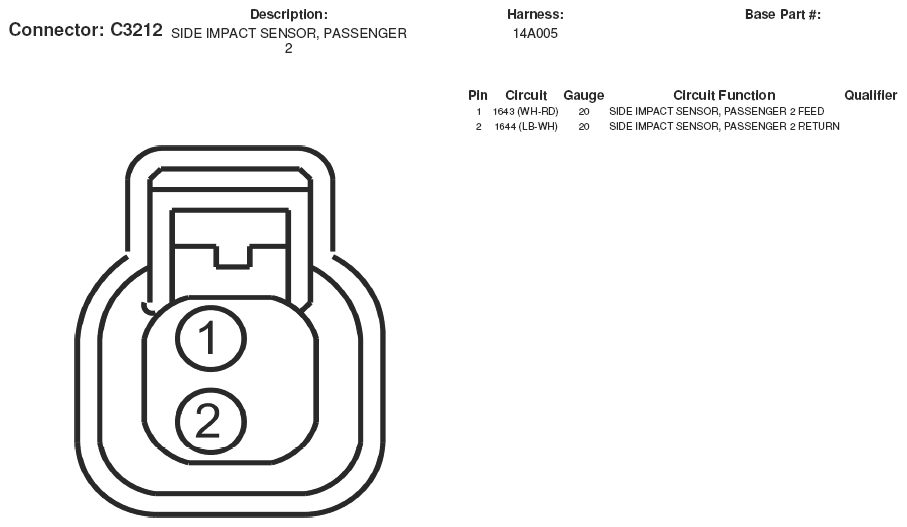

Fig 4: Side Impact Sensor Connector End View (C3212)

Courtesy of FORD MOTOR CO.
