Subwoofer Amplifier Connector

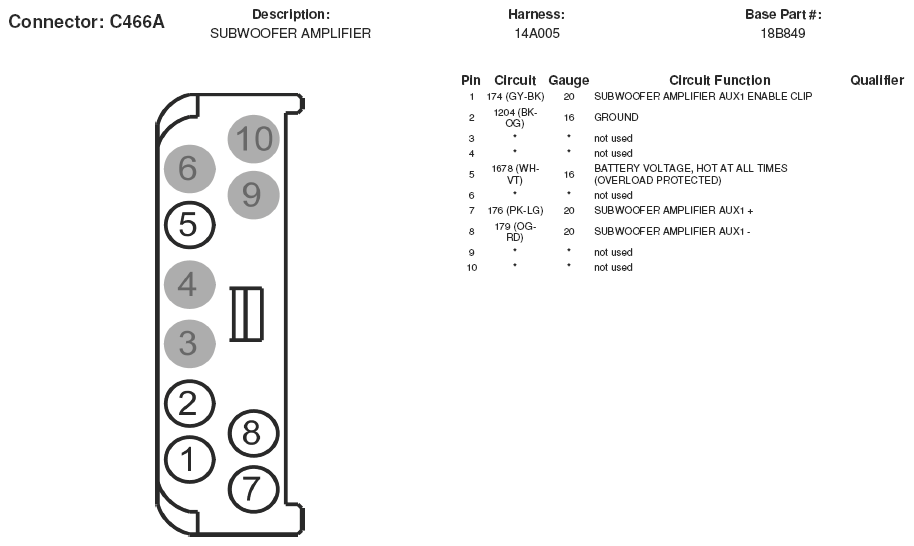

Fig 1: Subwoofer Amplifier Connector End View (C466A)
G05168780Courtesy of FORD MOTOR CO.

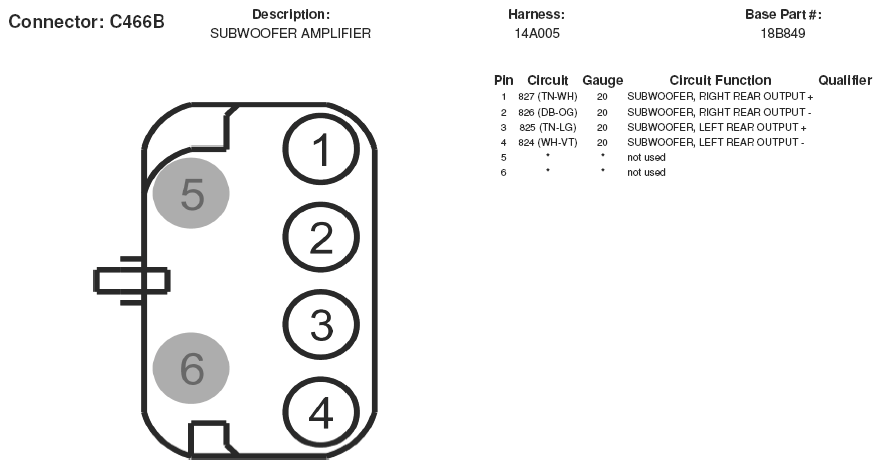

Fig 2: Subwoofer Amplifier Connector End View (C466B)
G05168781Courtesy of FORD MOTOR CO.

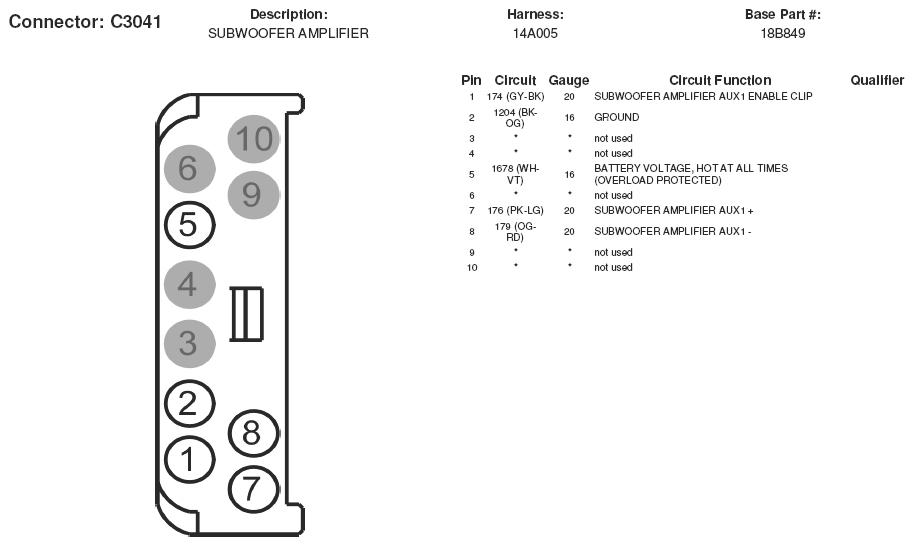

Fig 3: Subwoofer Amplifier Connector End View (C3041)
G05168897Courtesy of FORD MOTOR CO.
