Subwoofer Connector

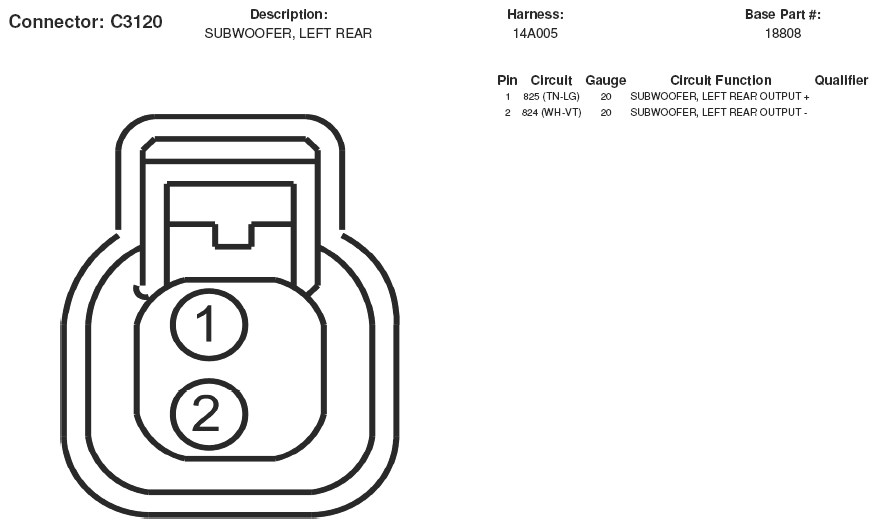

Fig 1: Subwoofer Connector End View (C3120)
G05168907Courtesy of FORD MOTOR CO.

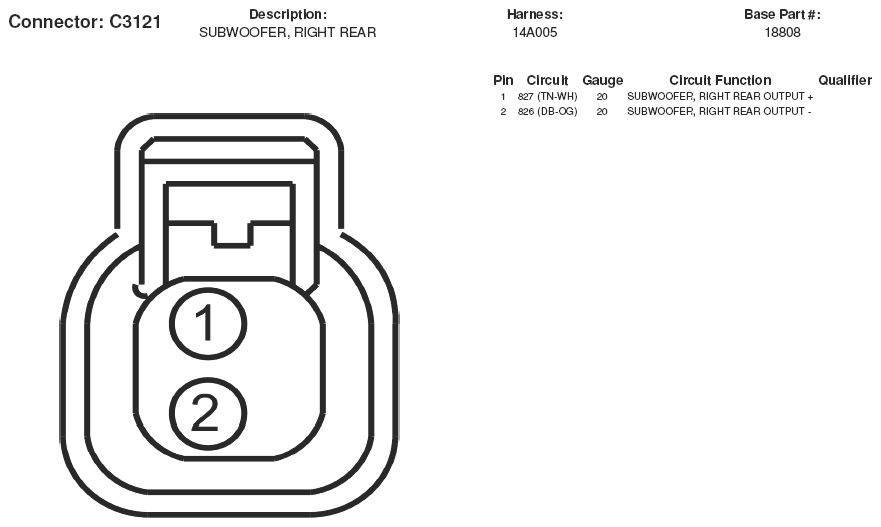

Fig 2: Subwoofer Connector End View (C3121)
G05168908Courtesy of FORD MOTOR CO.
