Removal And Installation: Clockspring: Notes

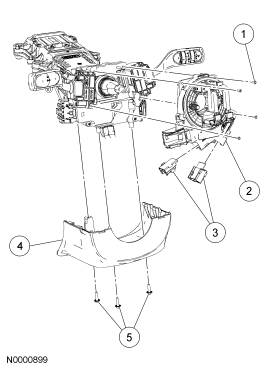

Fig 1: Exploded View Of Clockspring

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Clockspring screws (4 required)
2	14A664	Clockspring
3	-	Clockspring electrical connectors (part of 14401)
4	3K512	Lower steering column shroud
5	W504041	Lower steering column shroud screws
