Driver Air Bag Module: Notes

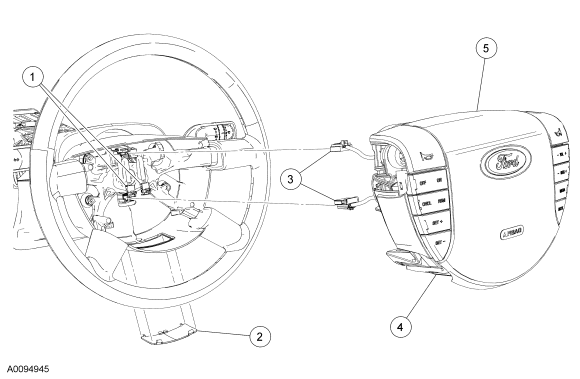

Fig 1: Exploded View Of Driver Air Bag Module

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Air bag module electrical connectors (part of 14A664)
2	-	Steering wheel access cover
3	-	Horn and accessories electrical connectors
4	-	Air bag module wire clip (part of 043B13)
5	043B13	Air bag module
