Restraints Control Module (RCM): Notes

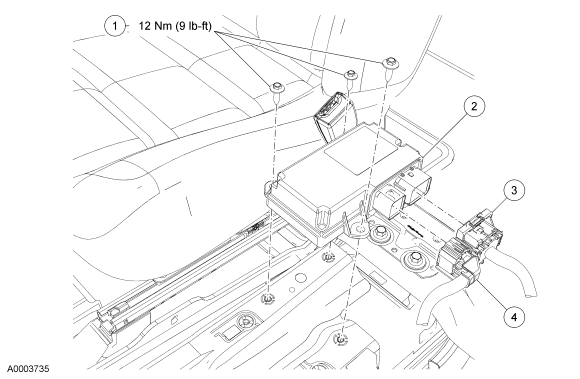

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707722	Restraints control module (RCM) bolts
2	14B321	RCM
3	-	Large RCM electrical connector (part of 14A005)
4	-	Small RCM electrical connector (part of 14401)
