Safety Canopy Module - Freestyle: Notes

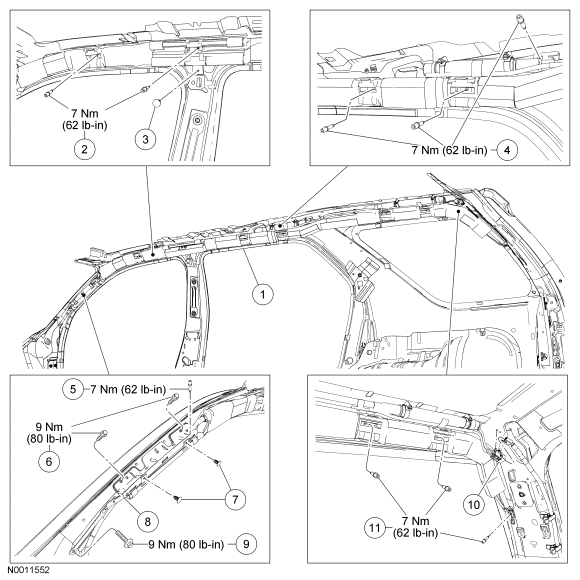

Fig 1: Exploded View Of Safety Canopy Module With Torque Specifications (Freestyle)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety canopy module
2	W709179	Safety canopy module bolts
3	-	Pin-type retainer
4	W709179	Safety canopy module bolts
5	W709179	Safety canopy module bolt
6	-	A-pillar trim bracket bolts
7	-	Pin-type retainers
8	-	A-pillar trim bracket
9	W710176	Front safety canopy module tether bracket bolt
10	-	Safety canopy module electrical connector
11	W709179	Safety canopy module bolts
