Safety Belt Buckle - Second Row, Freestyle: Notes

NOTE: 60 percent seat shown, 40 percent seat similar.

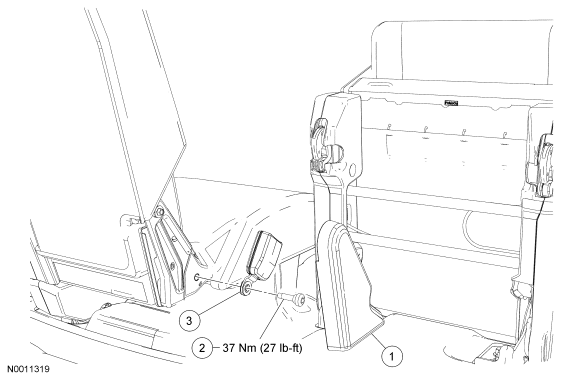

Fig 1: Exploded View Of Second Row Safety Belt Buckle With Torque Specifications (Freestyle)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Outboard pivot cover
2	-	Safety belt buckle bolt
3	61203	Safety belt buckle
