Safety Belt Retractor and Pretensioner: Notes

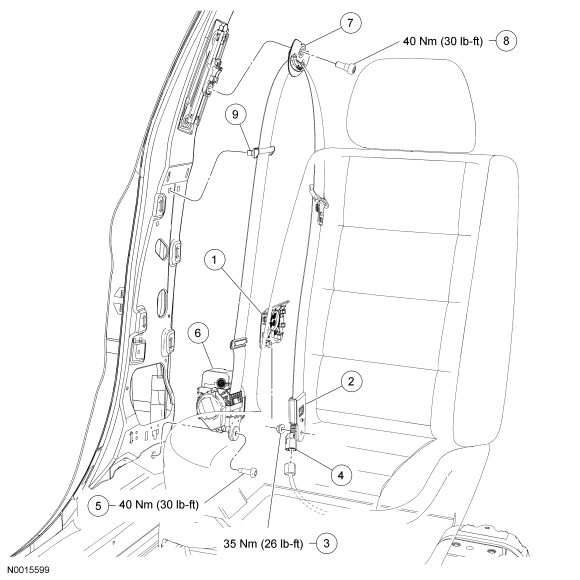

Fig 1: Exploded View Of Safety Belt Retractor & Pretensioner With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	66415	Cushion side shield cover
2	-	Belt tension sensor (part of 611B08)
3	W520113	Safety belt anchor nut
4	-	Belt tension sensor electrical connector
5	W7049344	Safety belt retractor and pretensioner bolt
6	611B08	Safety belt retractor and pretensioner assembly
7	-	Safety belt guide D-ring (part of 611B08)
8	-	Safety belt D-ring bolt
9	-	Secondary safety belt guide
