Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH side shown, LH side similar.

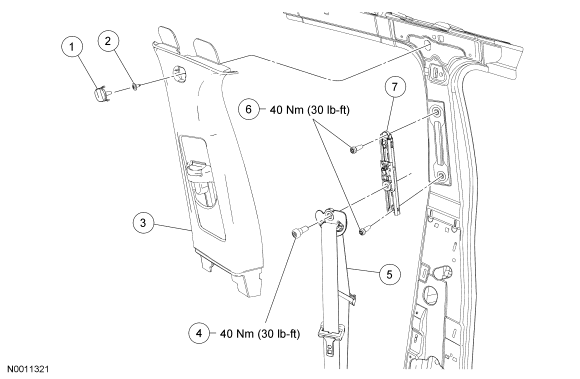

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	74672A40	Upper B-pillar screw cover
2	56910-S	Upper B-pillar screw
3	7424397/ 7424396	Upper B-pillar trim panel (LH/RH)
4	W709344	Safety belt D-ring bolt
5	611B08	Safety belt and retractor assembly
6	-	Safety belt shoulder height adjuster bolts (2 required) (part of 602B82)
7	602B82	Safety belt shoulder height adjuster
