Accelerator Pedal Position Sensor Connector
Accelerator Pedal Position Sensor Connector

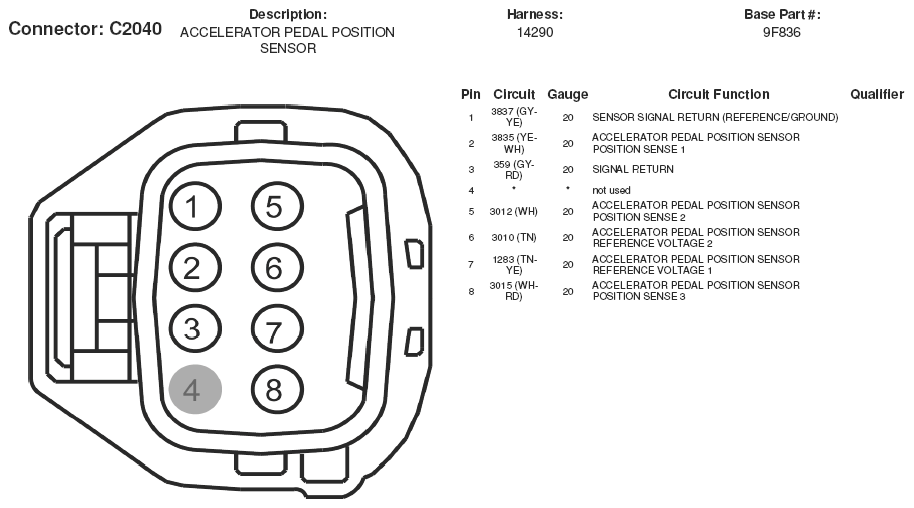

Fig 1: Accelerator Pedal Position Sensor Connector End View (C2040)
Courtesy of FORD MOTOR CO.
