Auxiliary Function Selector Switch Connector
Auxiliary Function Selector Switch Connector

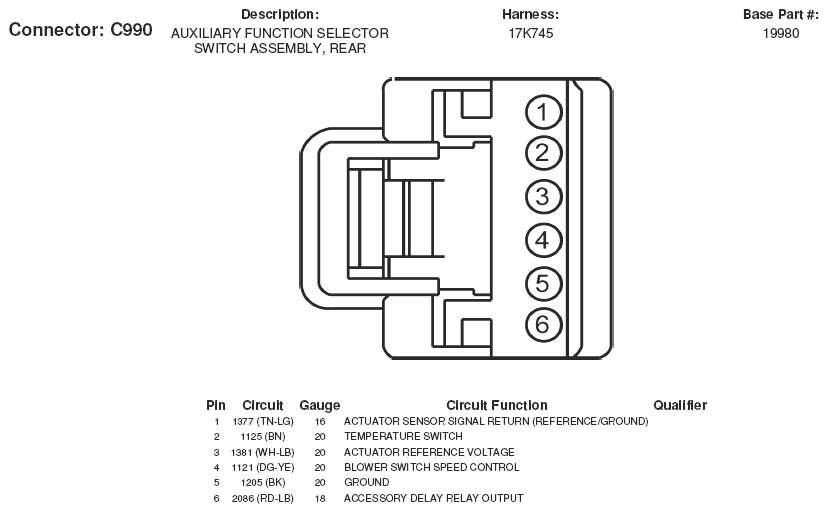

Fig 1: Auxiliary Function Selector Switch Connector End View (C990)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
