Auxiliary Relay Box 2 Connector

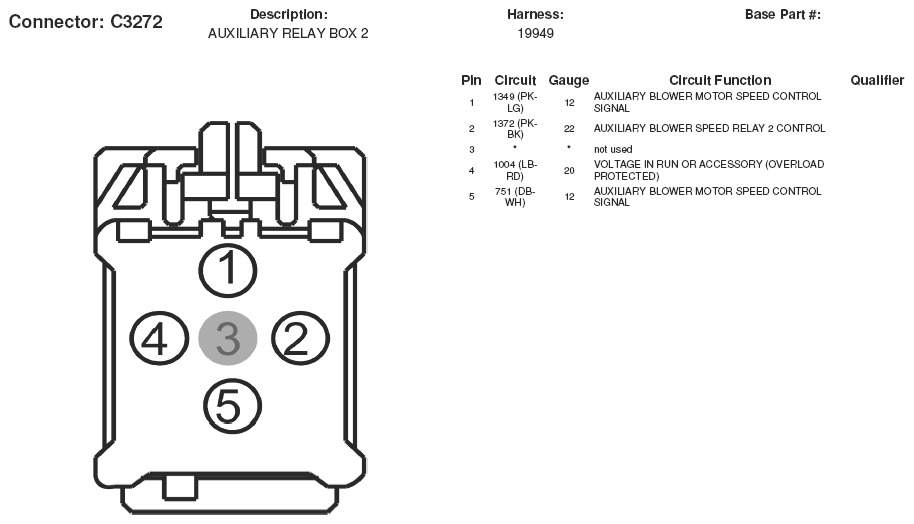

Fig 1: Auxiliary Relay Box 2 Connector End View (C3272)
G05168927Courtesy of FORD MOTOR CO.
