Climate Control Assembly Connectors

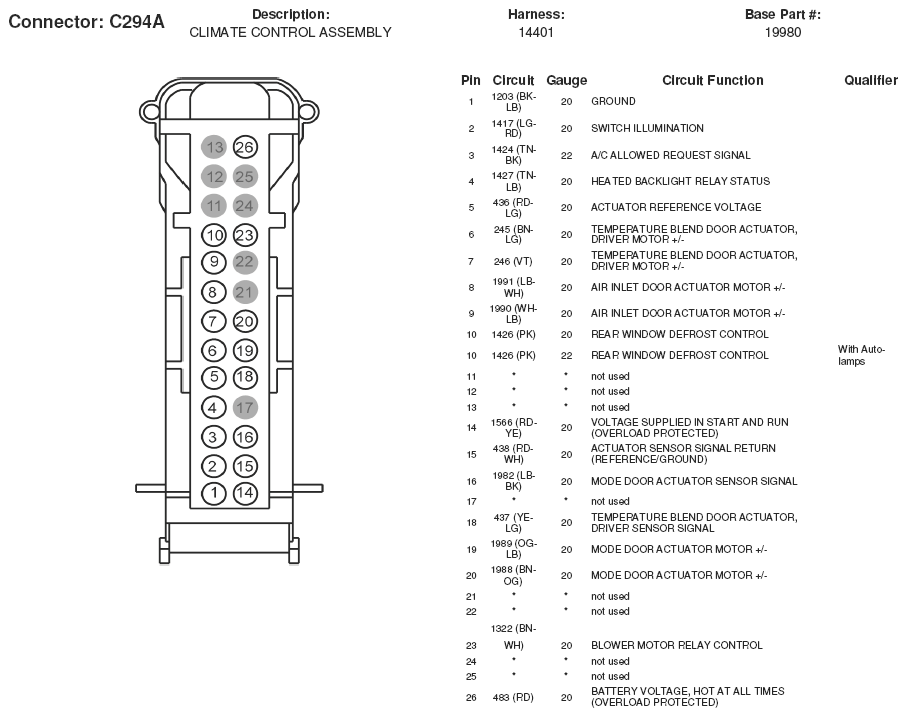

Fig 1: Climate Control Assembly Connector End View (C294A)
G05168738Courtesy of FORD MOTOR CO.

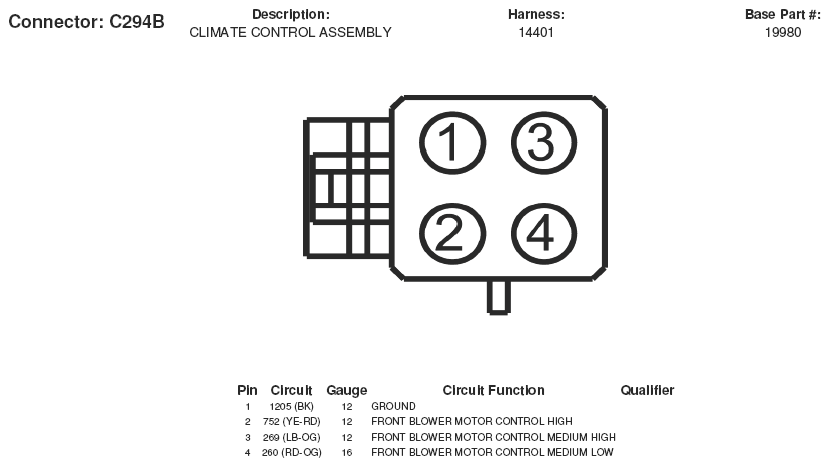

Fig 2: Climate Control Assembly Connector End View (C294B)
G05168739Courtesy of FORD MOTOR CO.
