Clockspring Connectors

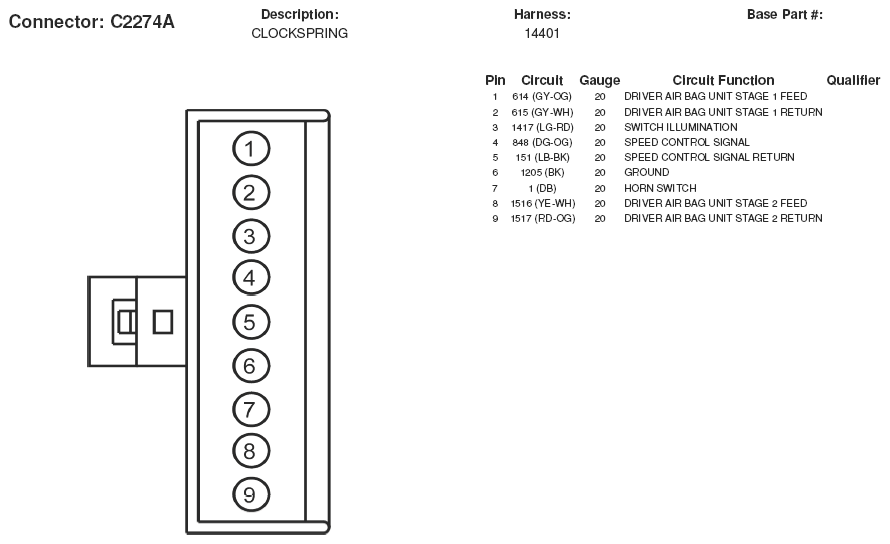

Fig 1: Clockspring Connector End View (C2274A)
G05168884Courtesy of FORD MOTOR CO.

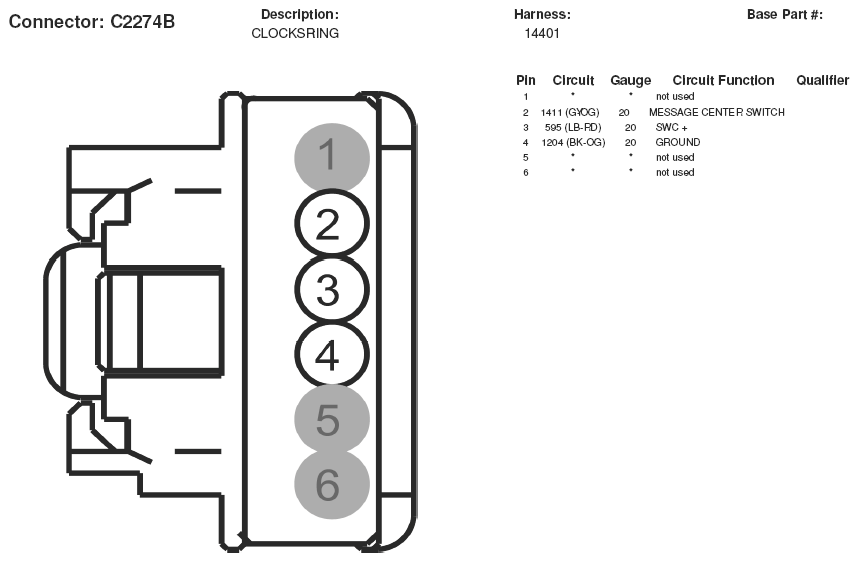

Fig 2: Clockspring Connector End View (C2274B)
G05168885Courtesy of FORD MOTOR CO.
