FixVault
Home
›
Mercury
›
2007
›
Montego Base, FWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Connector End Views
›
Connector Views
›
Data Link Connector
Data Link Connector

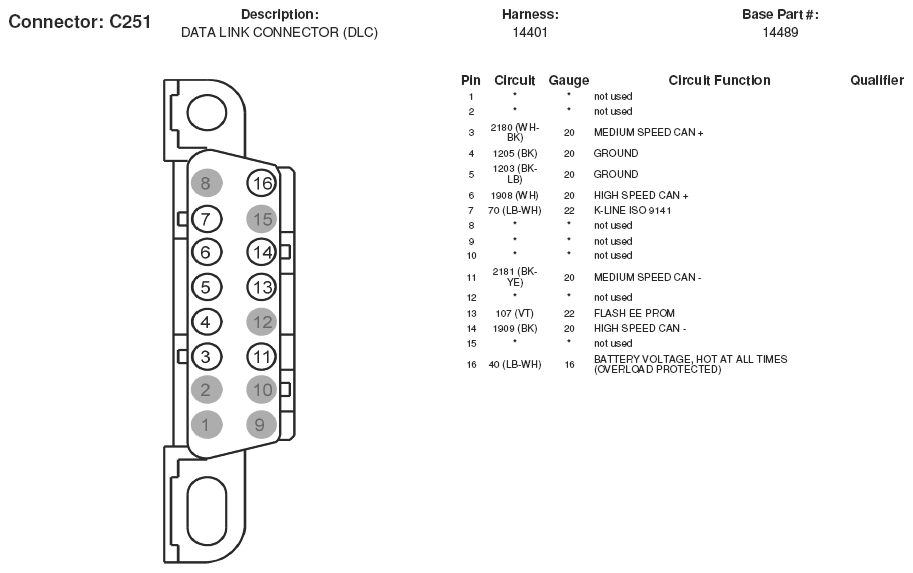

Fig 1: Data Link Connector Connector End View (C251)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
