Differential Electronic Module Connector
Differential Electronic Module Connector

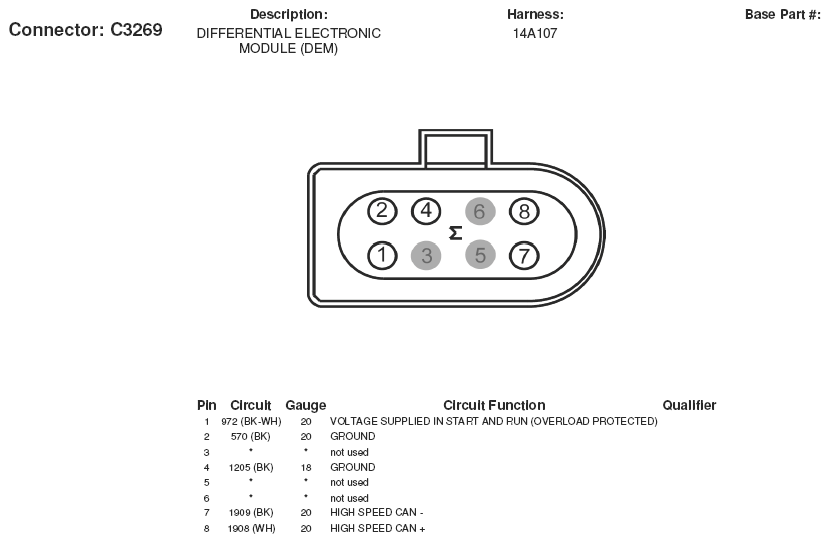

Fig 1: Differential Electronic Module Connector End View (C3269)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
