Driver Seat Module Connector

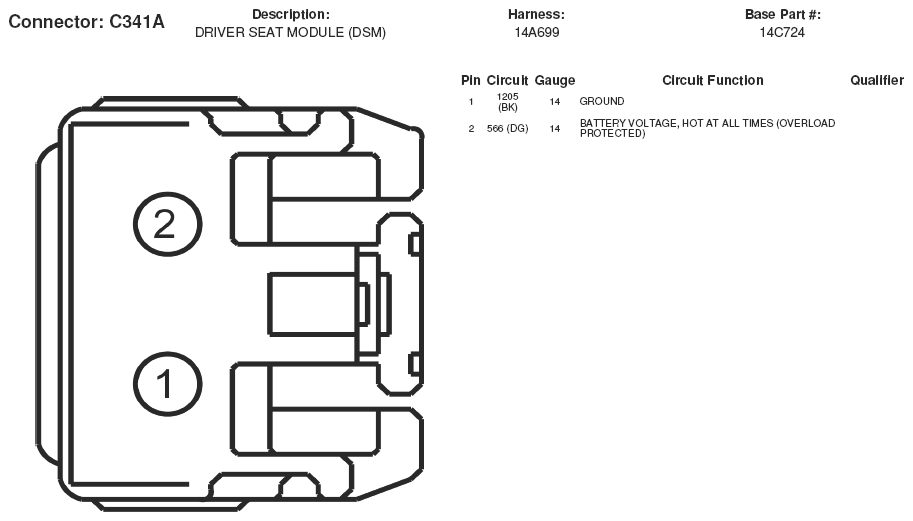

Fig 1: Driver Seat Module Connector End View (C341A)

Courtesy of FORD MOTOR CO.

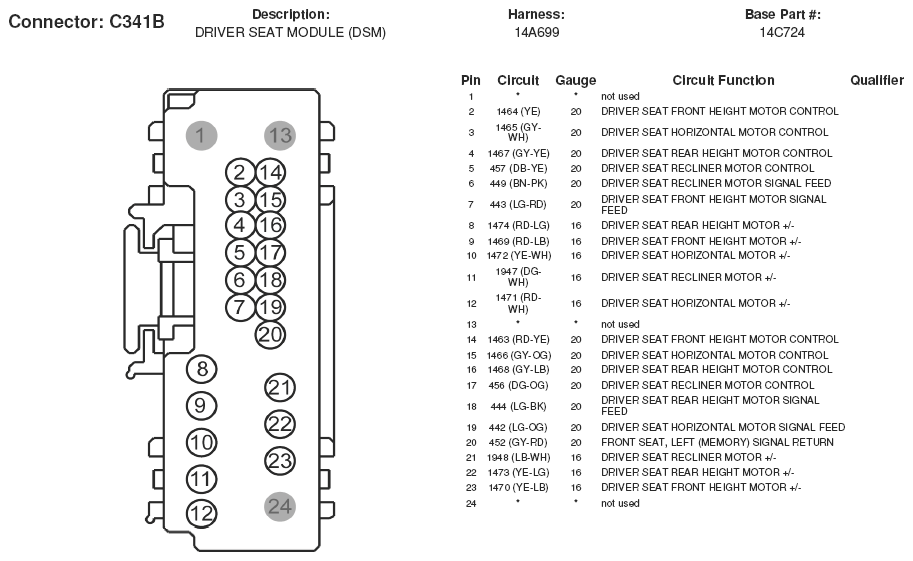

Fig 2: Driver Seat Module Connector End View (C341B)

Courtesy of FORD MOTOR CO.

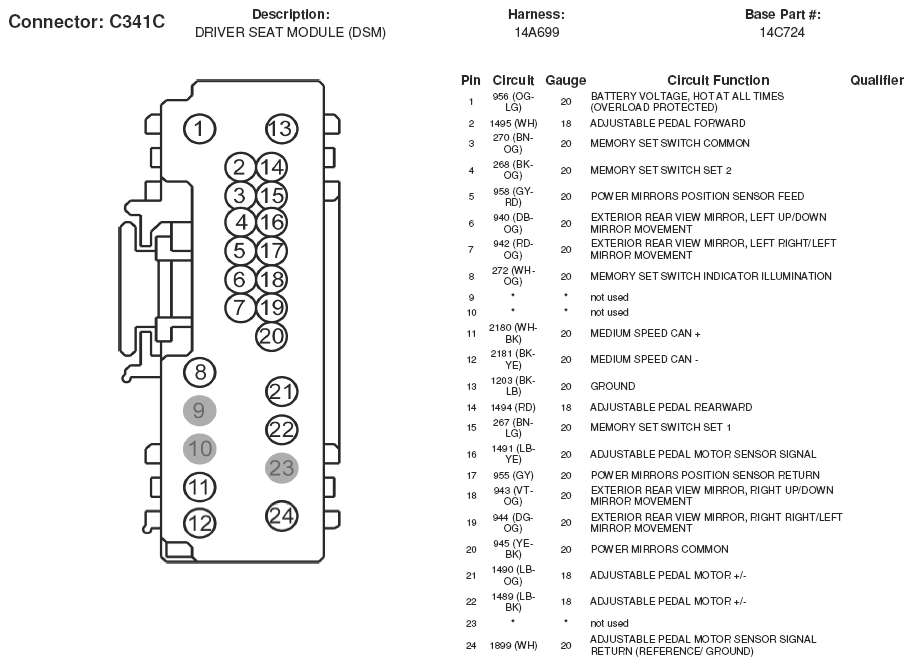

Fig 3: Driver Seat Module Connector End View (C341C)

Courtesy of FORD MOTOR CO.

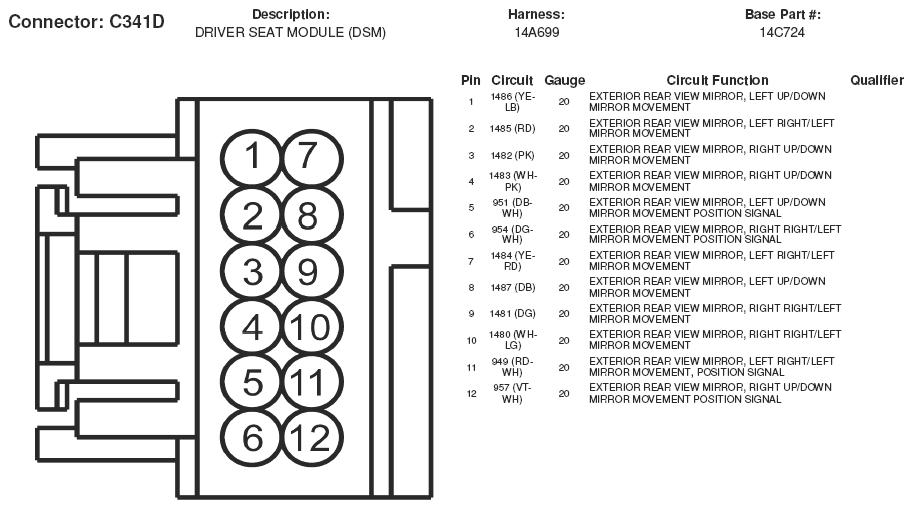

Fig 4: Driver Seat Module Connector End View (C341D)

Courtesy of FORD MOTOR CO.
