Electrochromatic Inside Mirror Unit Connector
Electrochromatic Inside Mirror Unit Connector

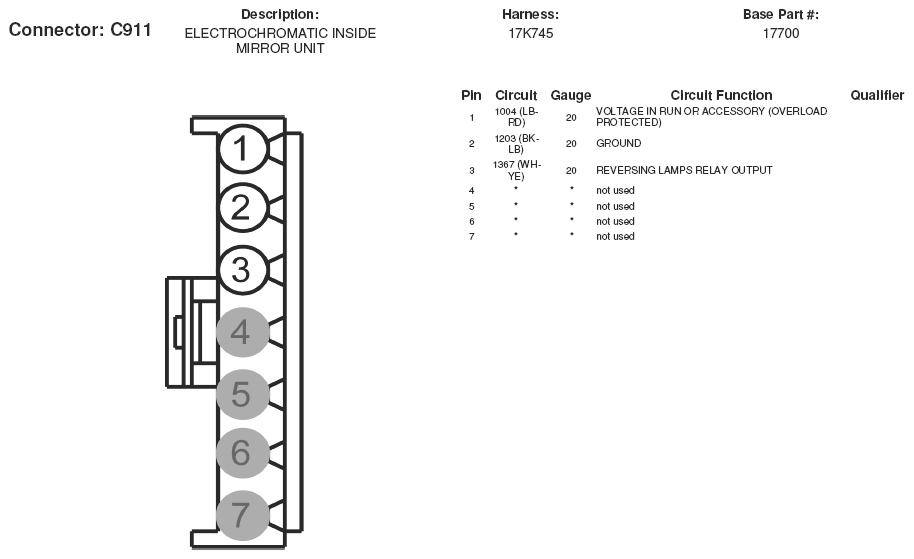

Fig 1: Electrochromatic Inside Mirror Unit Connector End View (C911)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
