Electronic Throttle Control Module Connectors

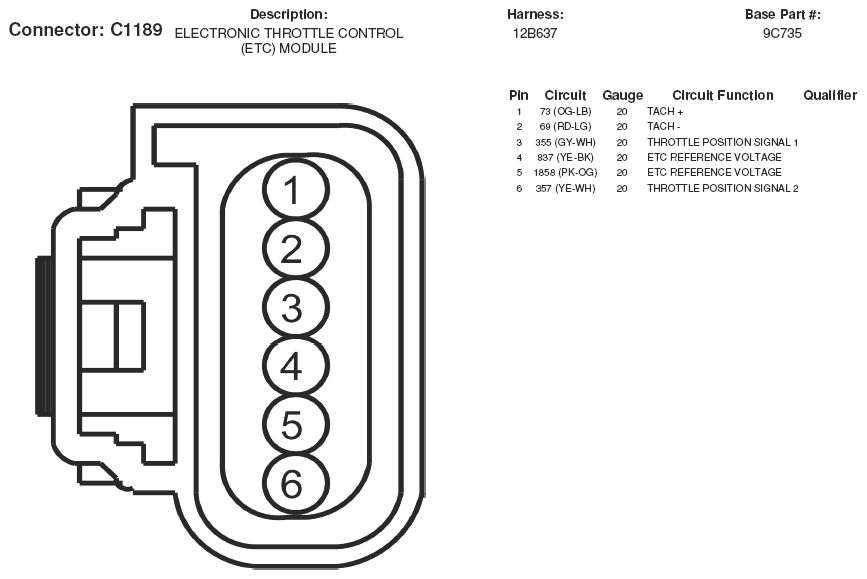

Fig 1: Electronic Throttle Control Module Connector End View (C1189)
G05168859Courtesy of FORD MOTOR CO.
