Front Blower Motor Speed Connector

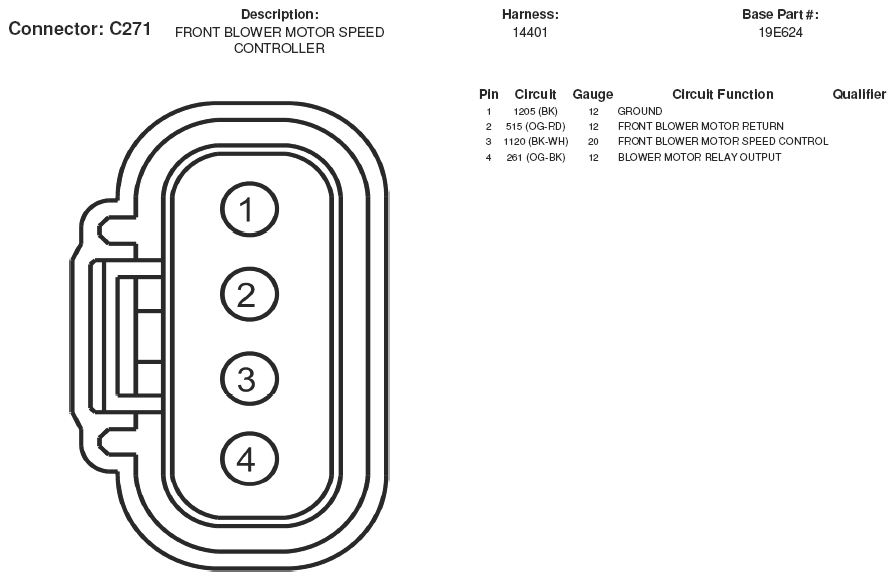

Fig 1: Front Blower Motor Speed Connector End View (C271)
G05168734Courtesy of FORD MOTOR CO.
