Fuel Pump Driver Module Connector
Fuel Pump Driver Module Connector

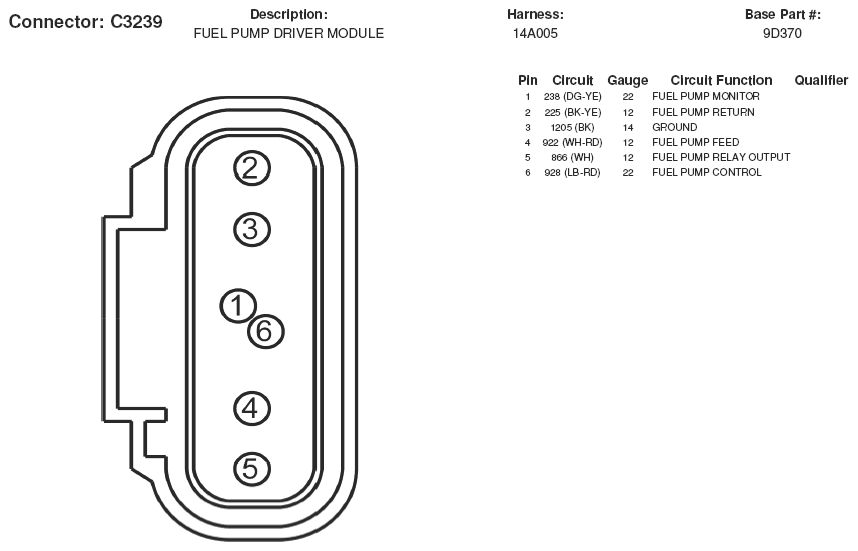

Fig 1: Fuel Pump Driver Module Connector End View (C3239)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
