HVAC Module DATC Connector
HVAC Module DATC Connector

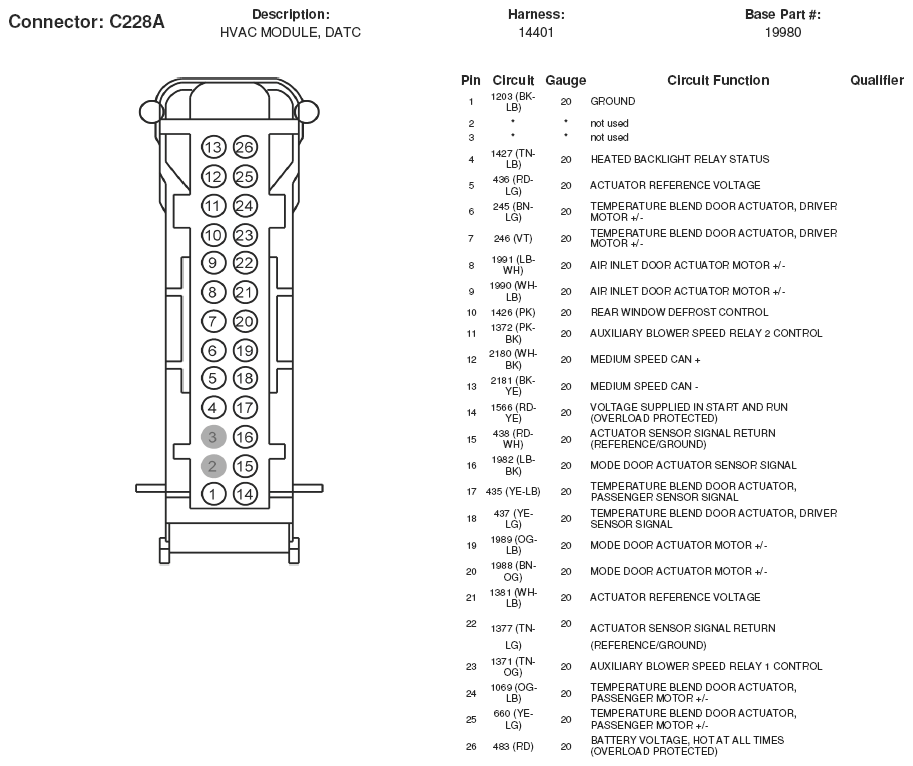

Fig 1: HVAC Module DATC Connector End View (C228A)
Courtesy of FORD MOTOR CO.

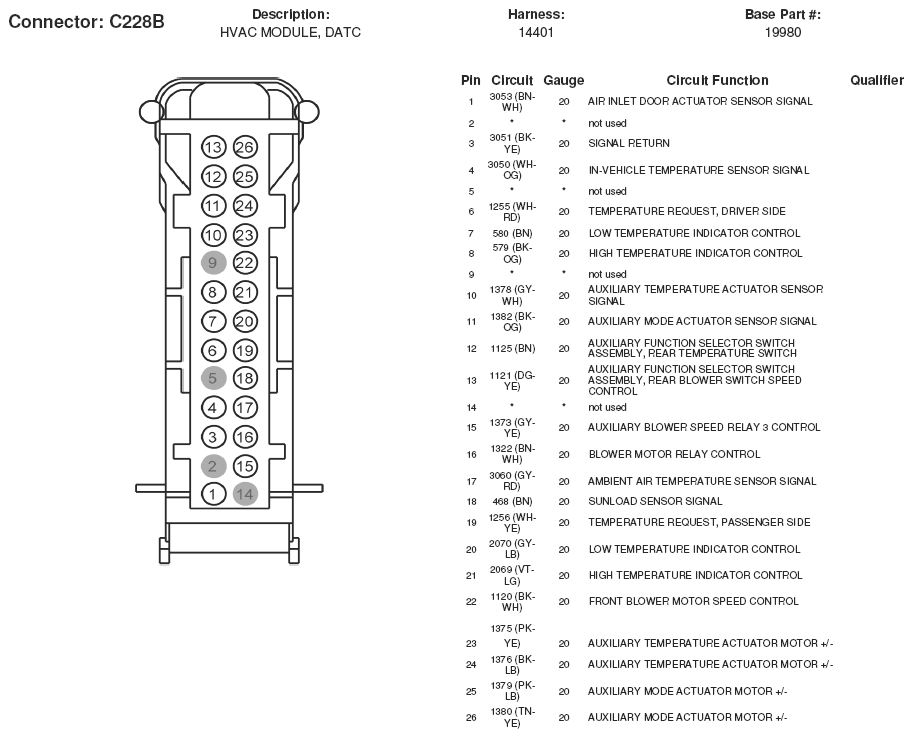

Fig 2: HVAC Module DATC Connector End View (C228B)
Courtesy of FORD MOTOR CO.
