Headlamp Switch Connector
Headlamp Switch Connector

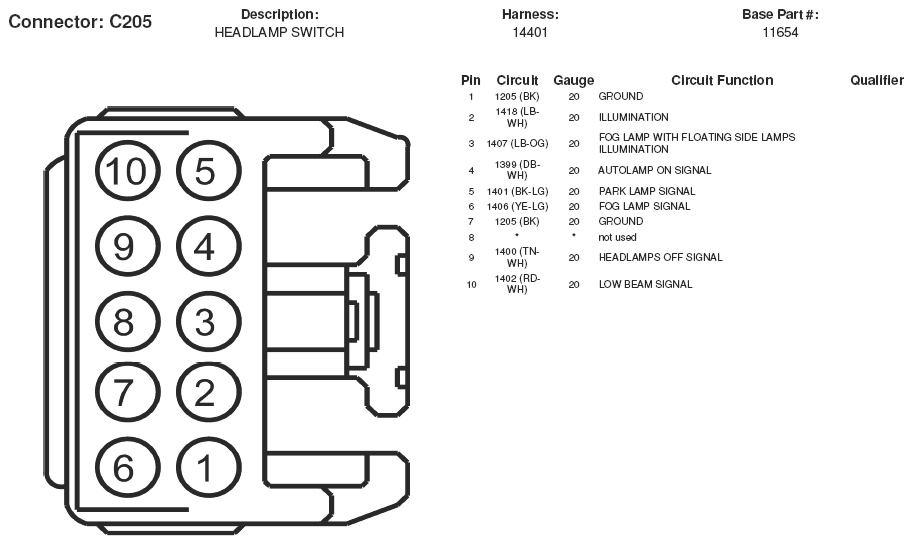

Fig 1: Headlamp Switch Connector End View (C205)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
