Heated Seat Module Connectors
Heated Seat Module Connectors

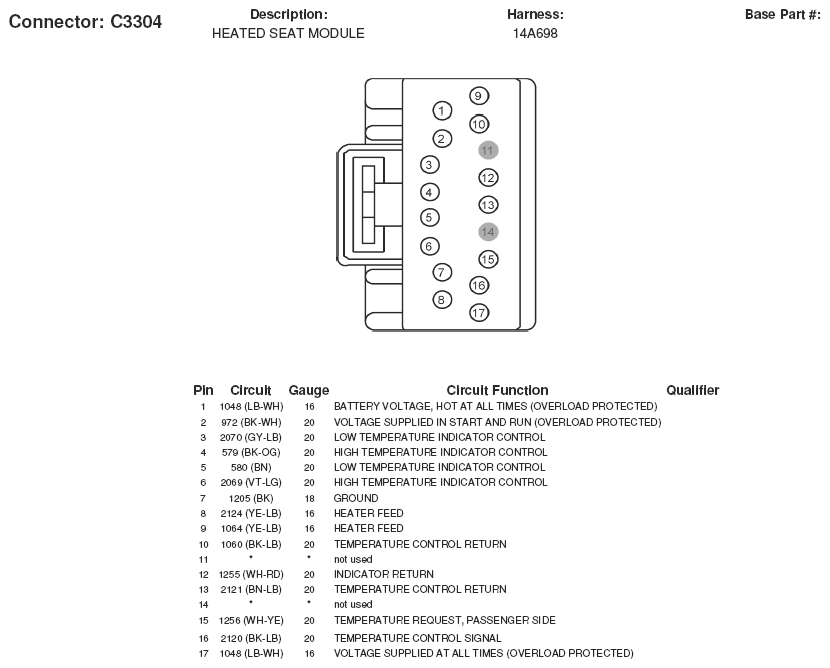

Fig 1: Heated Seat Module Connector End View (C3304)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
