Ignition Transformer Capacitor Connector
Ignition Transformer Capacitor Connector

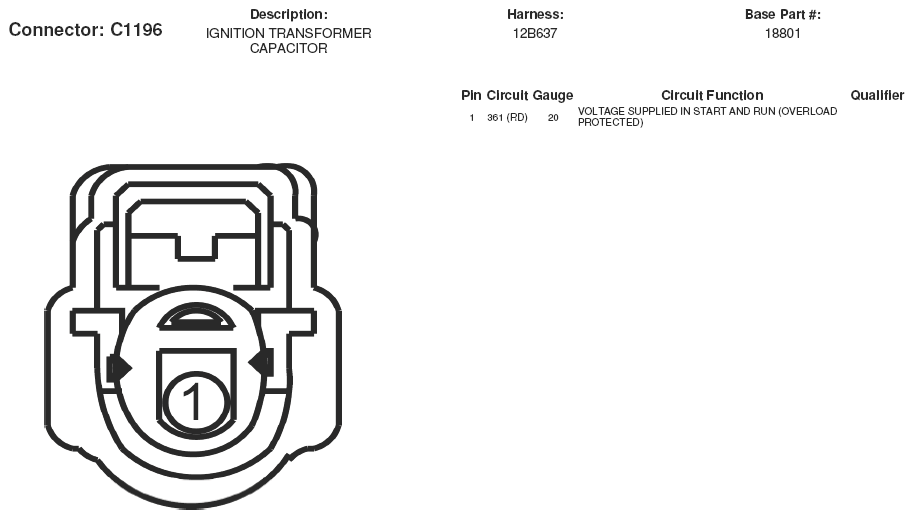

Fig 1: Ignition Transformer Capacitor Connector End View (C1196)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
