Knock Sensor Connector
Knock Sensor Connector

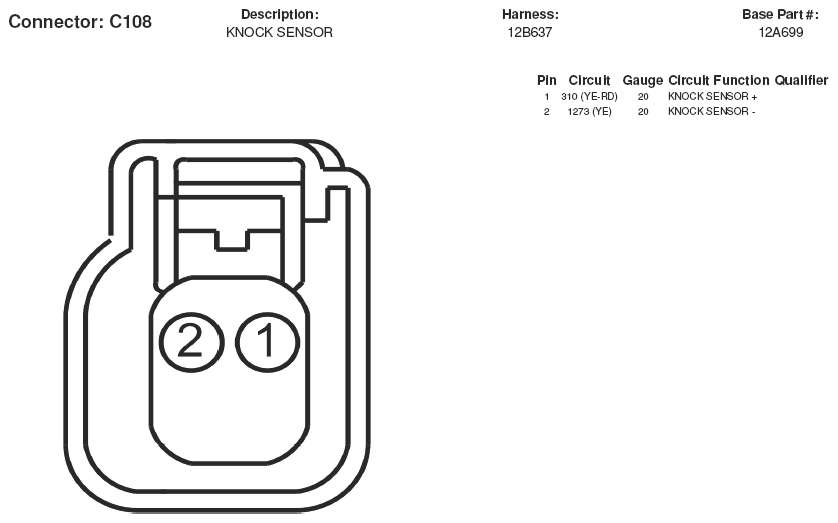

Fig 1: Knock Sensor Connector End View (C108)
Courtesy of FORD MOTOR CO.
