License Plate Lamp Connector

Fig 1: License Plate Lamp Connector End View (C452)
G05168778Courtesy of FORD MOTOR CO.

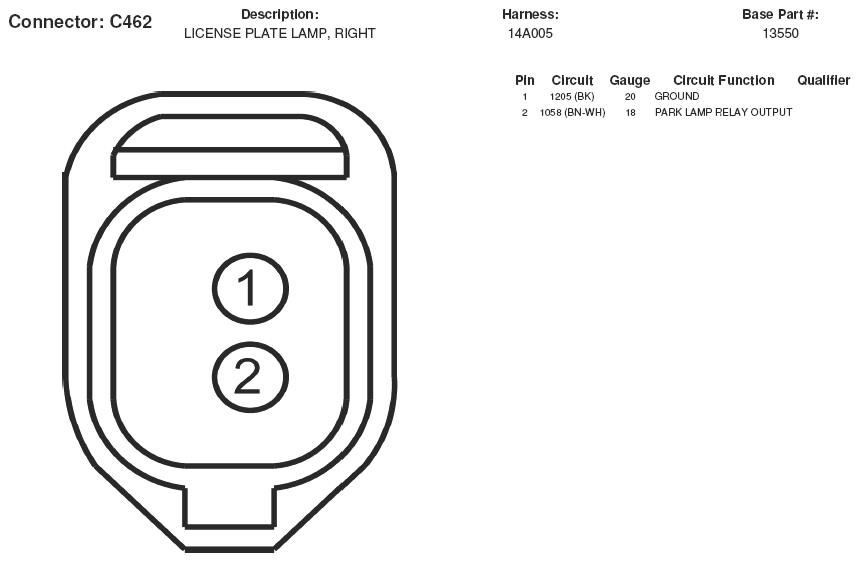

Fig 2: License Plate Lamp Connector End View (C462)
G05168779Courtesy of FORD MOTOR CO.
