Parking Brake Switch Connector
Parking Brake Switch Connector

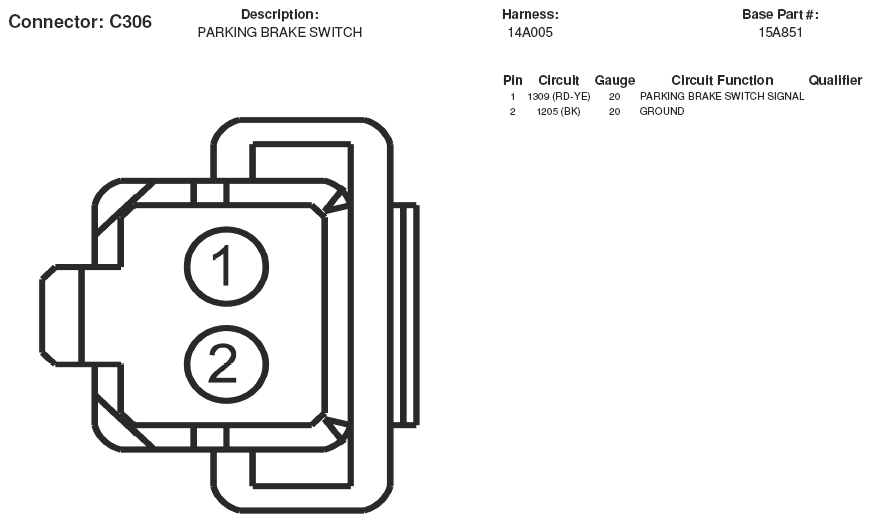

Fig 1: Parking Brake Switch Connector End View (C306)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
