Power Point Console Connector

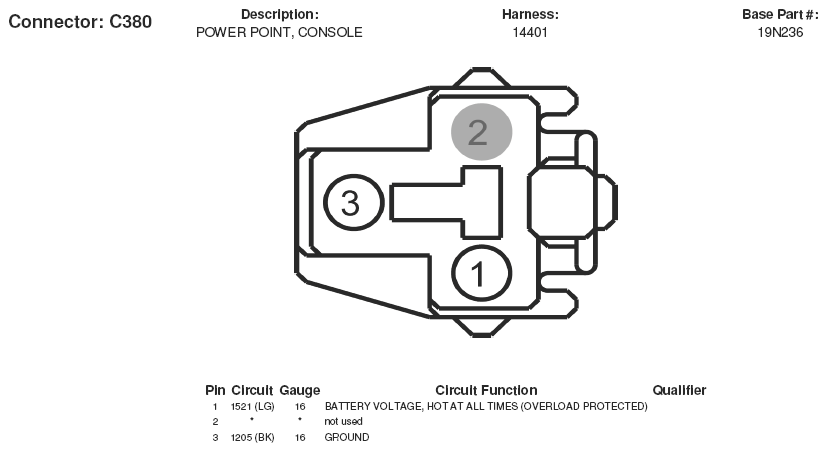

Fig 1: Power Point Console Connector End View (C380)
G05168767Courtesy of FORD MOTOR CO.
