Rear Entertainment Module Connector
Rear Entertainment Module Connector

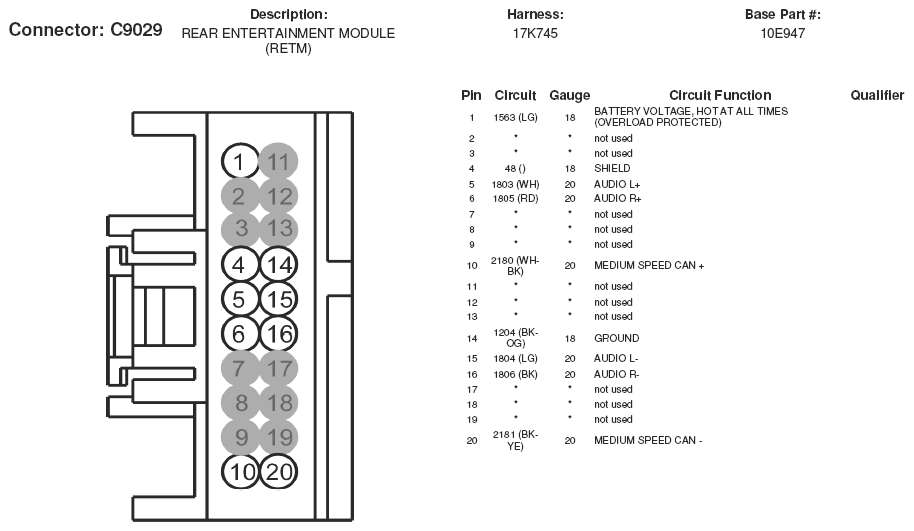

Fig 1: Rear Entertainment Module Connector End View (C9029)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
