Rear Wiper Motor Assembly Connector
Rear Wiper Motor Assembly Connector

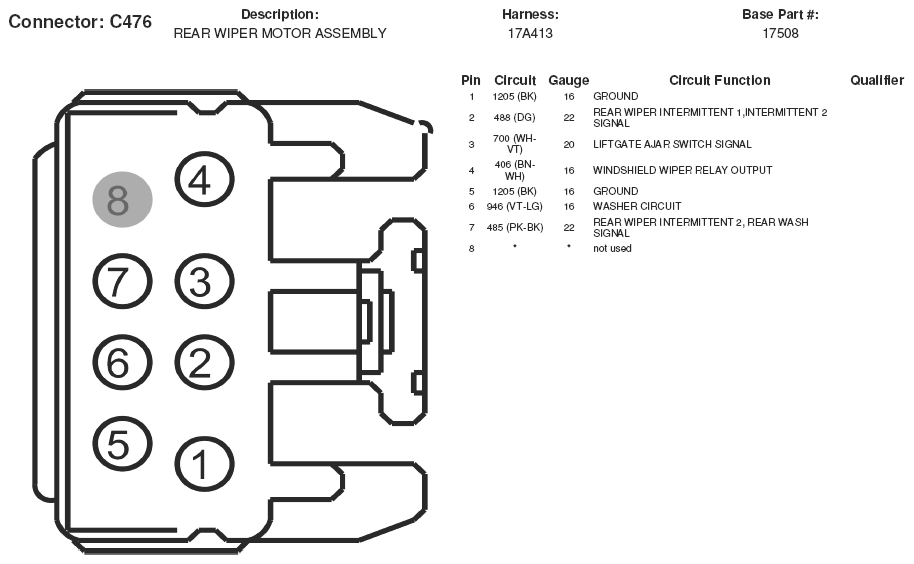

Fig 1: Rear Wiper Motor Assembly Connector End View (C476)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
